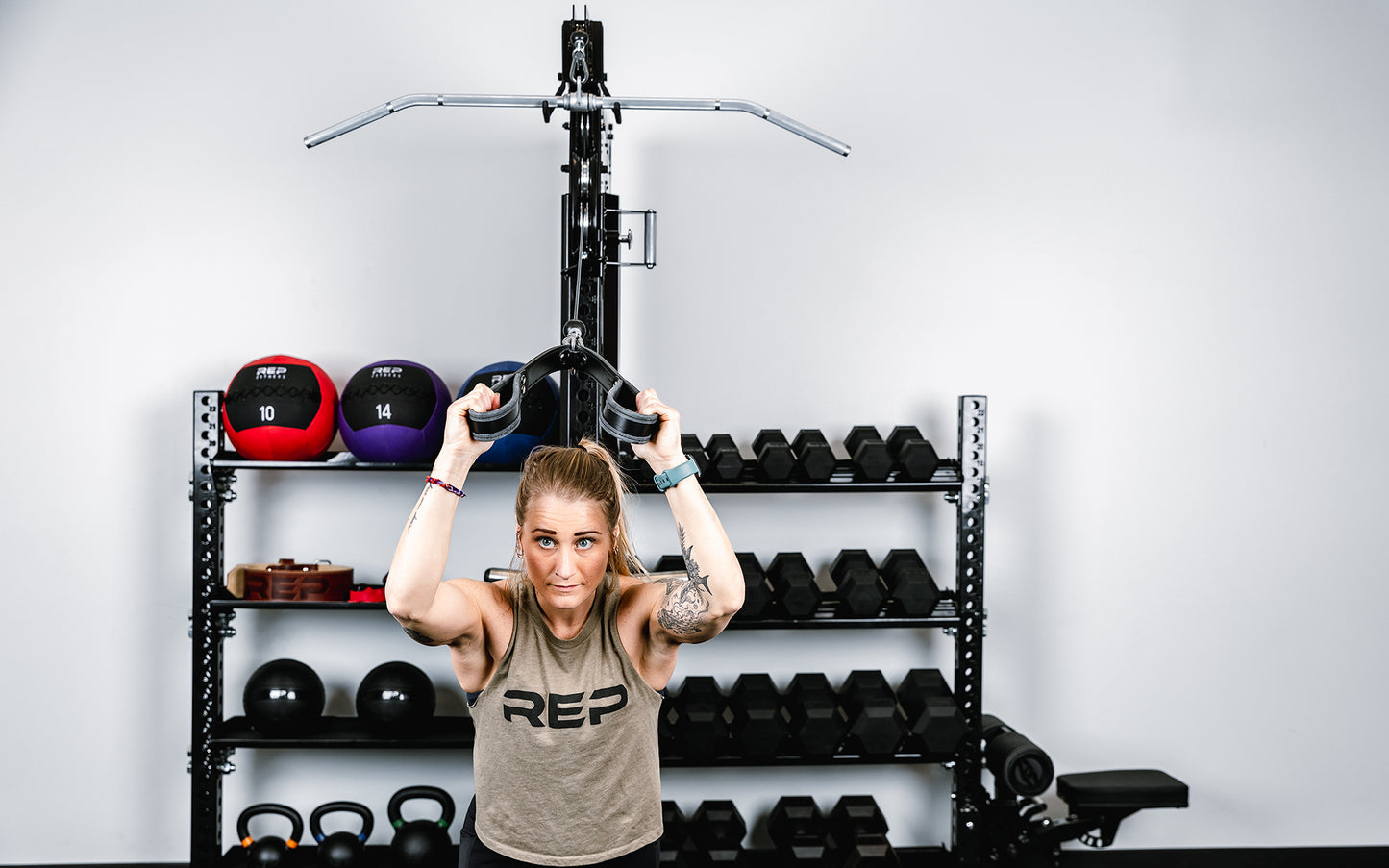

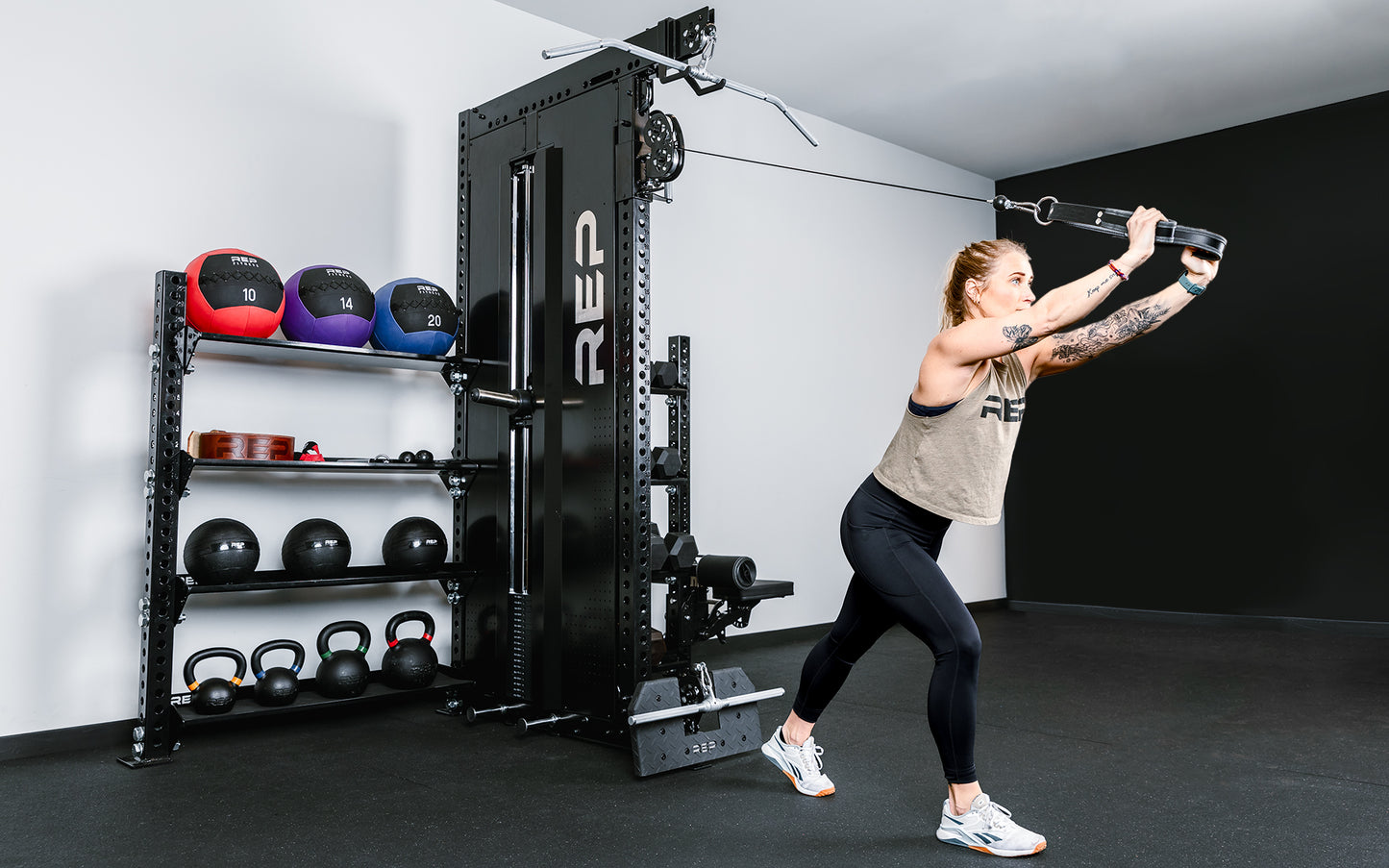

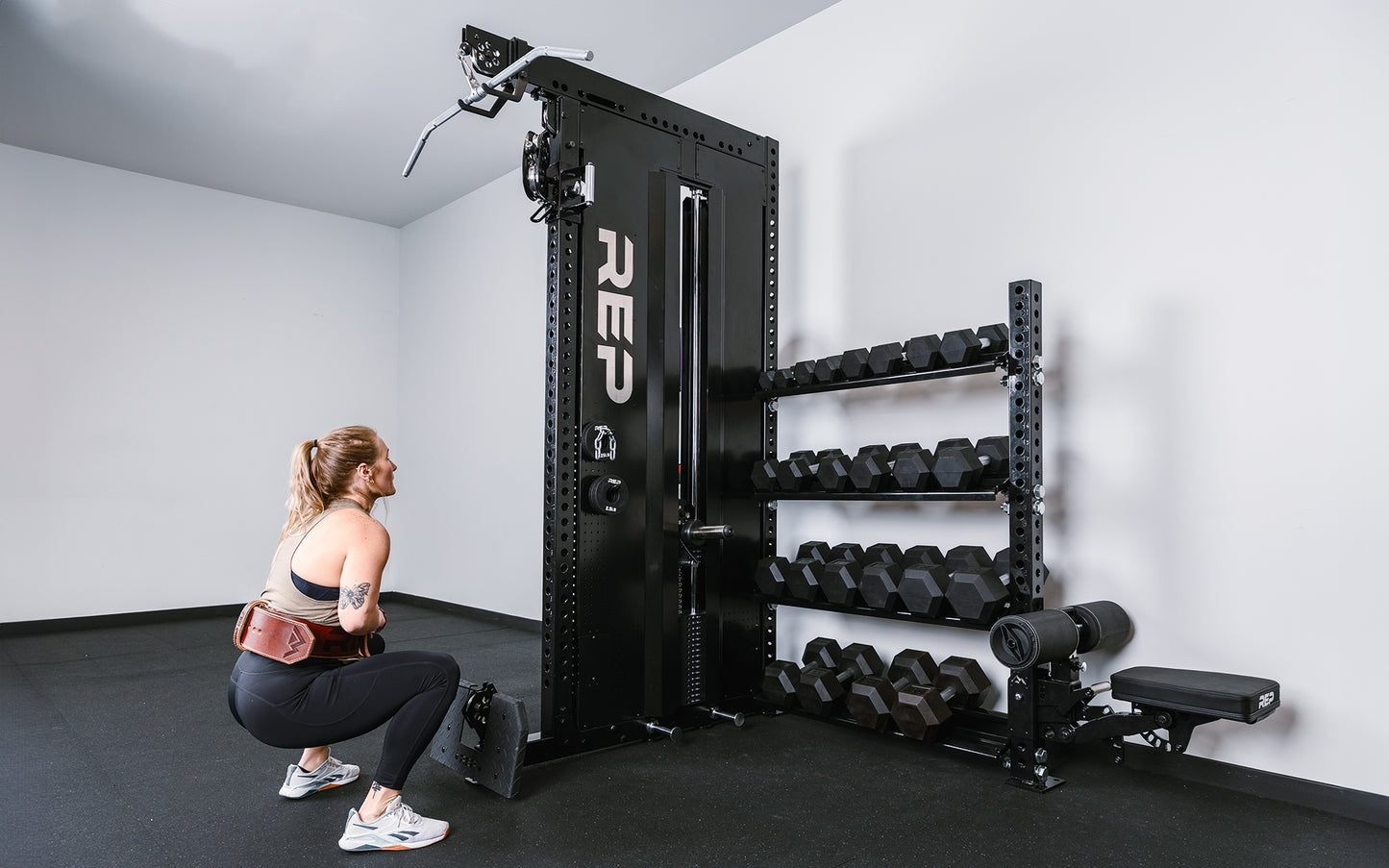

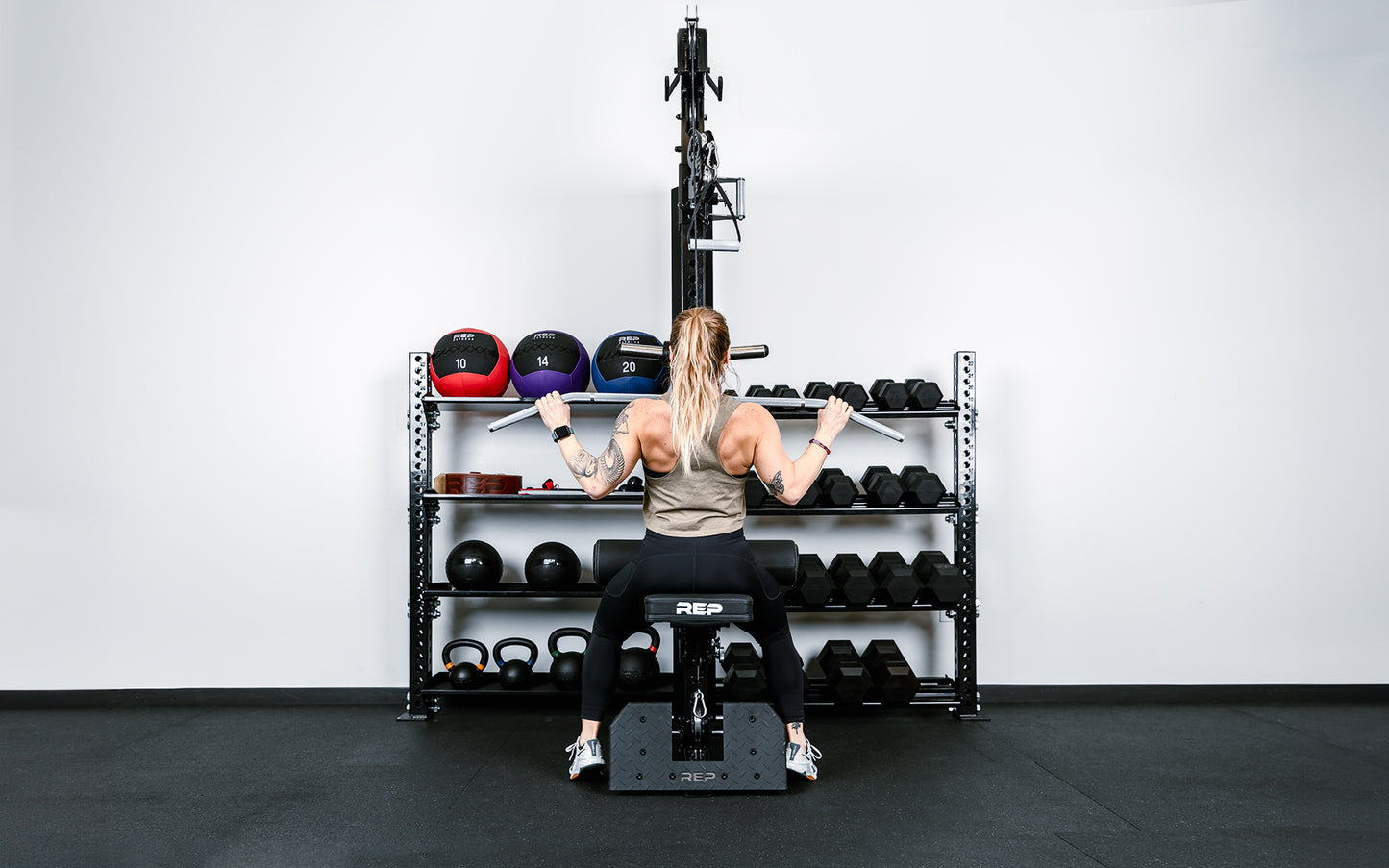

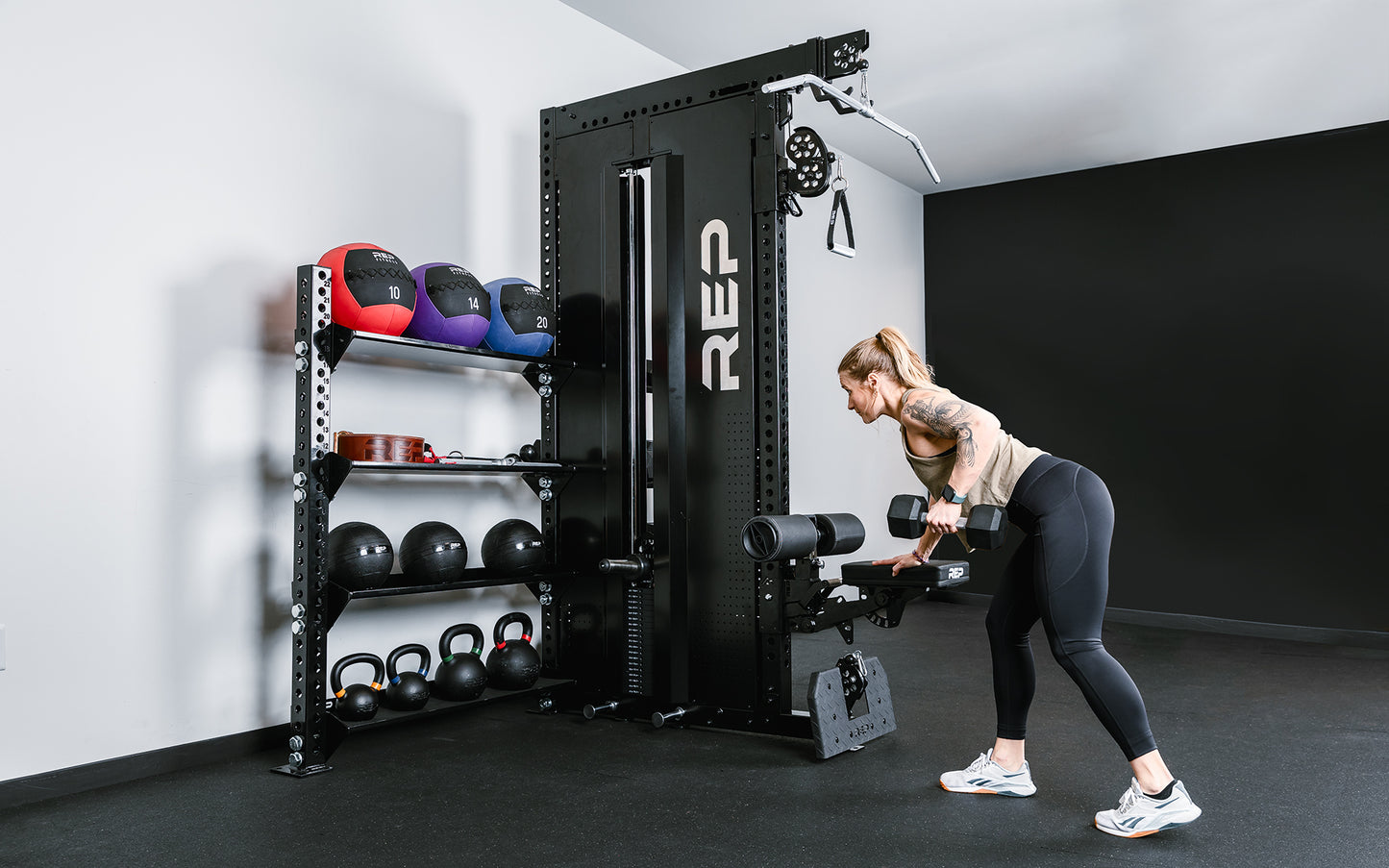

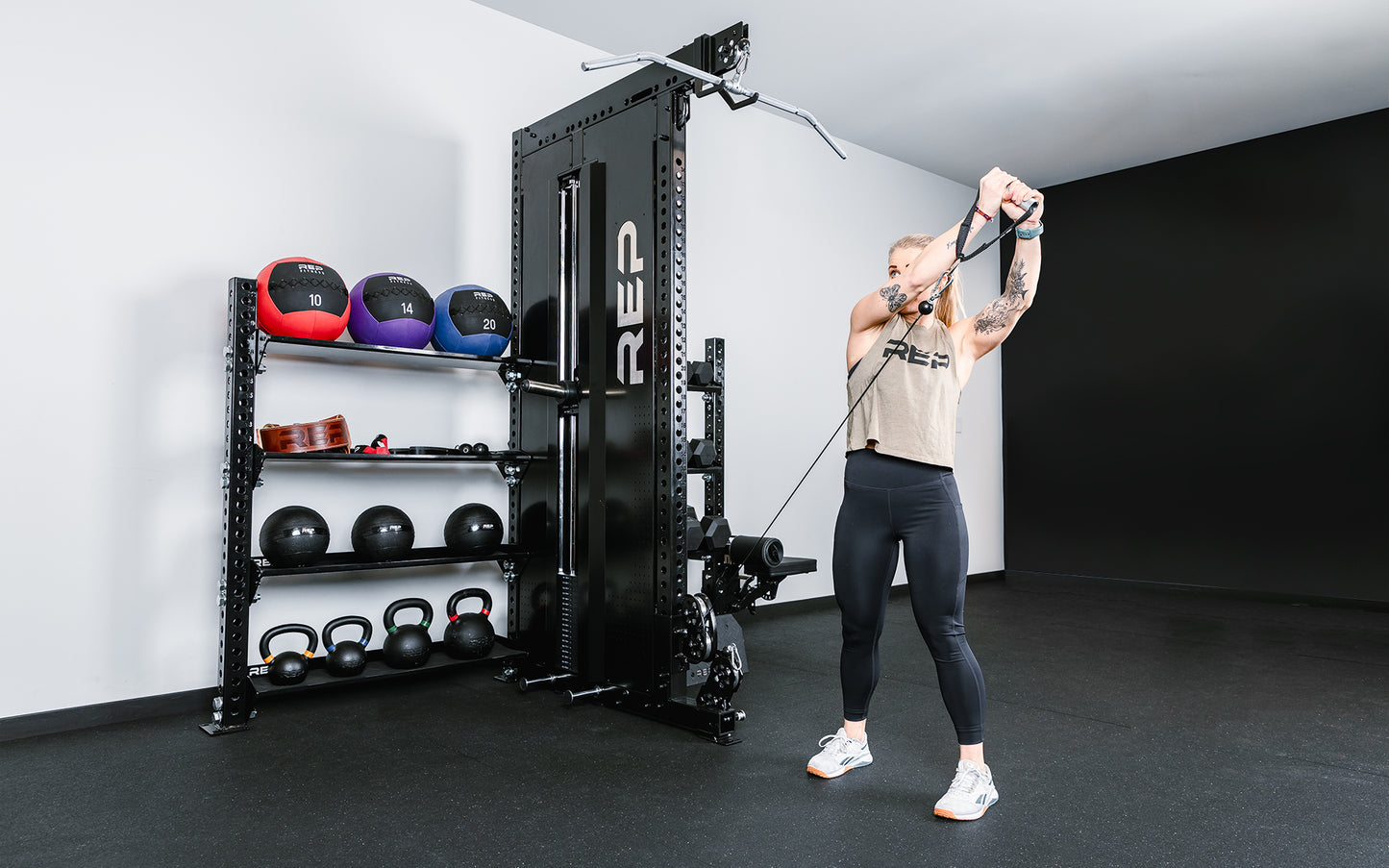

The Adonis™- Cable Tower With Storage includes different items, depending on your configuration. The right or left side Adonis™ - Cable Tower With Storage includes the Adonis™, a pair of steel D-handles, a knurled, hard-chrome lat pulldown bar, a low row bar, one pair of 1.25lb and one pair of 2.5lb micro-plates accented by a Grecian pattern (a nod to the mythology that inspired the equipment's name), a pair of 4" pegs, a base to provide lateral support on the opposite side of the storage, up to four storage shelves of your choice, and a storage upright.

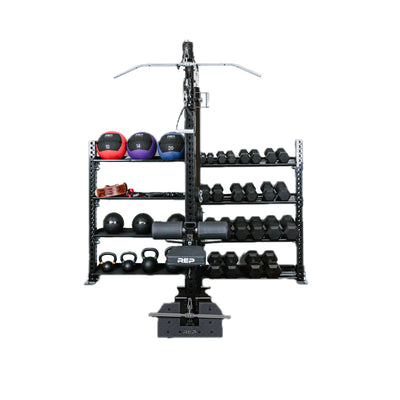

The Adonis™ cable tower with dual-sided storage includes an Adonis™ tower, a pair of steel D-handles, a knurled, hard-chrome lat pulldown bar, a low row bar, one pair of 1.25lb micro-plates, one pair of 2.5lb micro-plates, a pair of 4" pegs, up to eight storage shelves of your choice, and two storage uprights.

Maximize functionality with optional attachments, such as the Pegasus™ attachment, seat and upright attachment, and cable attachments.

The Adonis™ is for the home or commercial gym owner who wants a lat pulldown and low row, while also gaining some of the features of a functional trainer, all in one piece of equipment. This is a stand-alone, low-profile cable machine comes with our built-on, custom modular storage - so perfect gym organization as an extension of your functional trainer. It is also a premium addition due to its thick powder coating and metallic black finish; 5000 Series holes; full-length metallic black shrouds; and rack extension options. The unit is laser-cut and robot-welded for a clean look.

On plate-loaded equipment, you change the weight by adding plates onto weight horns. On selectorized equipment, you change the weight using a pin and weight stack.

A 1:1 ratio means 20lbs on the cable creates 20lbs of resistance. These are also called single-pulley machines. A 2:1 ratio means 20lbs feels like 10lbs. These are also called double-pulley machines. A 2:1 ratio is great for functional training, when you want a faster-traveling cable. Think: more explosive exercises, quicker movements. That’s why we use that for the functional trainer aspect of the Adonis™. The 1:1 ratio is better for slower, strength-focused exercises, like heavy lat pulldowns. The Adonis™ offers both options for ultimate versatility.

The maximum usable weight on the cable system is 450lbs on both the plate-loaded and selectorized options, including the weight stack, weight plates distributed evenly, and band resistance. It feels like 450lbs for the lat pulldown and low row with a 1:1 ratio and feels like 225lbs through the trolley handle with a 2:1 ratio. The minimum usable weight for this machine is 10lbs for the trolley. The minimum usable weight for the lat pulldown and low row is 20lbs.

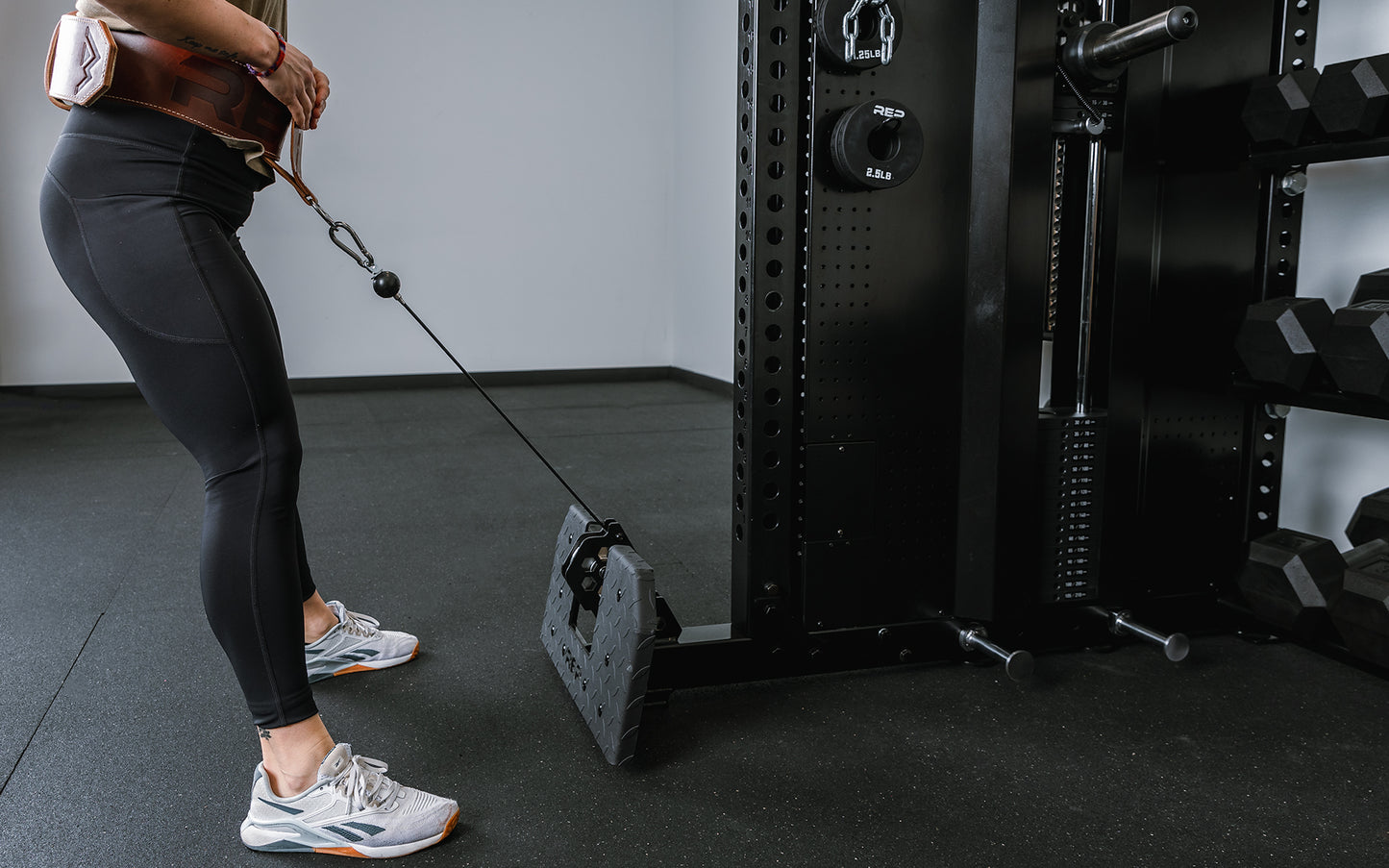

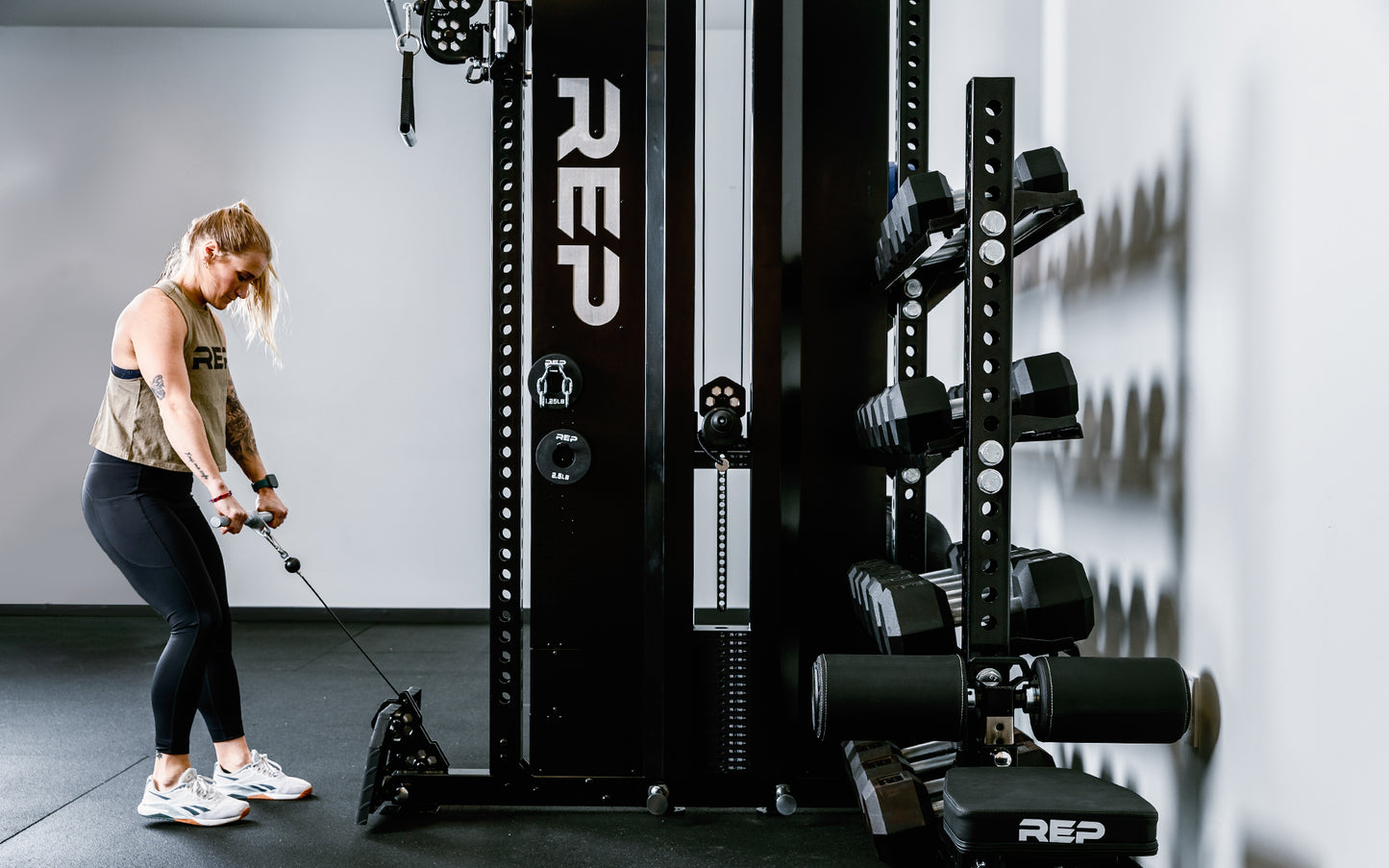

The trolley has a maximum usable height of 79” and a minimum usable height of 14”. For a higher attachment point, you can use the lat pulldown cable (88.8"), and for a lower attachment point, you can use the low row cable (10.8").

The Adonis™ has undergone testing by REP staff members with heights ranging from 4' 11" to 6'5", all of whom successfully performed tricep pressdowns and bicep curls with complete range of motion. For a breakdown on height recommendations, check out our blog.

The weight capacity maximum is 450lbs, including the weight stack weight, with weights distributed evenly, and band resistance.

The cable travel from the trolley handle is 108” and is 54” from the lat pulldown and low row component.

No, but it is highly recommended. Using a bench and Leg Roller might result in an unbalanced feel. With a Leg Roller pair, they must be mounted at different heights. We will be making a dual leg roller soon for those who do not want the Pegasus™ attachment.

The weight capacity of each peg board on the Adonis™ cable tower is 150lbs.

No. The selectorized weight stack of the Adonis™ is non-upgradable. The weight stack combined with plate loaded headplate offers maximum additional weight loading without having increased height or losing cable travel by adding extra selectorized plates.

This will vary depending on the size of the Slam Balls. You can store up to four REP 5-30lb Slam Balls or three REP 35-70lb Slam Balls per 41” shelf.

You can fit pairs of 5lb-20lb, 25lb-35lb, 40lb-50lb, 55lb-65lb, 70lb-75lb, 80lb-85lb, 90-95lb, or 95-100lb dumbbells on a single 41” shelf. You can fit a full set of our 5-50lb dumbbells on three 41” dumbbell shelves. Rubber Coated Dumbbells are not compatible.

Each shelf can hold three medicine balls at a time.

This varies depending on the size of the bumper plates. You can store up to 13 45lb Competition Bumper Plates per shelf. When using 45lb REP Pinnacle Plates, you can store up to 12. When using the Black Bumper Plates, you can store up to 13.

Each shelf has a usable area of 3.13SQFT. It depends on the size of the kettlebells, and the orientation you choose to store them (single or staggered). On a single shelf, you can stagger Kettlebells (kg) in pairs of:

The Dumbbell Storage Shelf, Kettlebell Storage Shelf, and Ball and Plate Storage Shelf each have a weight capacity of 600lbs.

No, it is not necessary to bolt the Adonis™ to the ground. While there is an option to bolt it down for extra stability through the base, the base alone provides sufficient support . When attached to a rack, the tower has lateral support through the crossmembers/Rear Base Stabilizer 2.0 and pull-up bar, eliminating the need for a base or bolting down. However, it is important to note that for a stand-alone or single-sided Adonis™ with Storage configuration, the base is required.

We cannot guarantee compatibility due to machining/manufacturing differences between companies.

Structural welds and frames have a lifetime warranty. Pop-pins, pulleys, bearings, and cables have a one-year warranty.
