Adonis™ - Dual Cable Tower with Storage

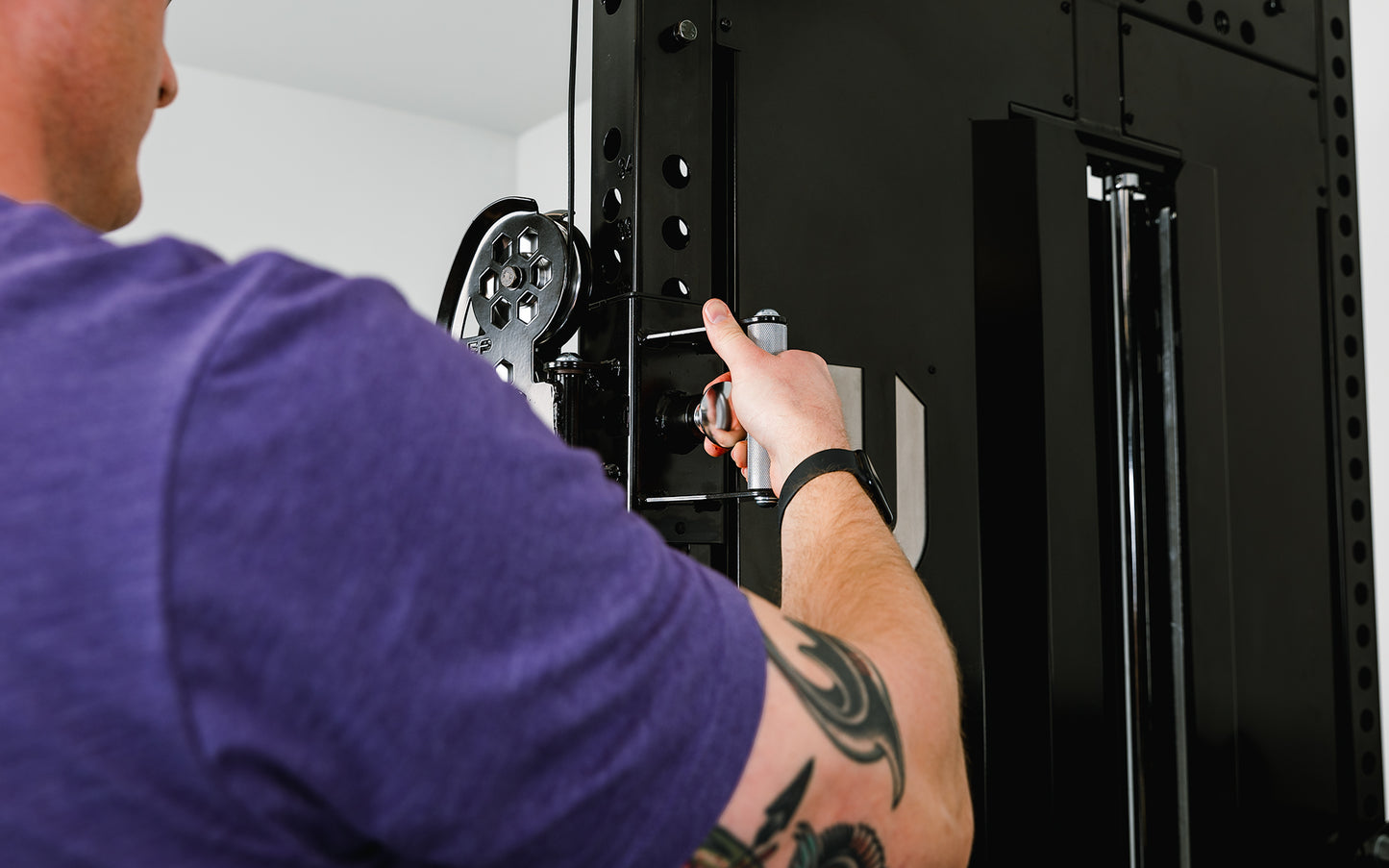

The trolley has a maximum usable height of 79”, and a minimum usable height of 14”. For a higher attachment point, use the lat pulldown cable (88.8”), and for a lower attachment point, you can use the low row cable (10.8”).

There is a 450lbs maximum weight capacity for the trolley and lat pulldown and low row.

The cable travel from the trolley handle is 108” and is 54" from the lat pulldown and low row component.

The 3x3" upright and 1" hole construction makes the Adonis™ compatible with 5000 Series attachments, such as the premier Pegasus™ attachment (seat and upright attachment) and Dip Station.

The Adonis™ ships partially assembled. Assembly takes approximately four to five hours with two people. Two people will be needed, as the parts are large and heavy. The pulleys and cables do not come preassembled.

A 1:1 ratio means 20lbs on the cable creates 20lbs of resistance. These are also called single-pulley machines. A 2:1 ratio means 20lbs feels like 10lbs. These are also called double-pulley machines. A 2:1 ratio is great for functional training, when you want a faster-traveling cable. Think: more explosive exercises, quicker movements. That’s why we use that for the functional trainer aspect of the Adonis™. The 1:1 ratio is better for slower, strength-focused exercises, like heavy lat pulldowns. The Adonis™ offers both options for ultimate versatility.

The maximum usable weight on the cable system is 450lbs on both the plate-loaded and selectorized options, including the weight stack, weight plates distributed evenly, and band resistance. It feels like 450lbs for the lat pulldown and low row with a 1:1 ratio and feels like 225lbs through the trolley handle with a 2:1 ratio. The minimum usable weight for this machine is 10lbs for the trolley. The minimum usable weight for the lat pulldown and low row is 20lbs.

The weight capacity of each peg board on the Adonis™ cable tower is 150lbs.

No. The selectorized weight stack of the Adonis™ is non-upgradable. The weight stack combined with plate loaded headplate offers maximum additional weight loading without having increased height or losing cable travel by adding extra selectorized plates.

The Adonis™ has undergone testing by REP staff members with heights ranging from 4'11" to 6'7", all of whom successfully performed tricep pressdowns and bicep curls with complete range of motion. For a breakdown on height recommendations, check out our blog.

We do not recommend this as the Adonis™ cable tower and Athena™ would not be directly aligned with one another. We recommend either a dual Adonis™ or dual Athena™ setup for those looking to create a larger cable crossover.

On plate-loaded equipment, you change the weight by adding plates onto weight horns. On selectorized equipment, you change the weight using a pin and weight stack.

The weight capacity maximum is 450lbs, including the weight stack, with plates distributed evenly, and band resistance.

•Two Adonis™ cable towers

•Telescoping footplates with seven adjustments on each Adonis™

•Four steel D-handles

•Two knurled, chrome lat pulldown bars

•Two pairs of 1.25lb and two pairs of 2.5lb plates (accented by a Grecian pattern -- a nod to the mythology that inspired the equipment's name)

•Two pairs of 4" pegs

•Two low row bars

•Two laser-cut pegboards to organize small attachments

•Three 72"  Dumbbell & Kettlebell Storage Shelves (reversible)

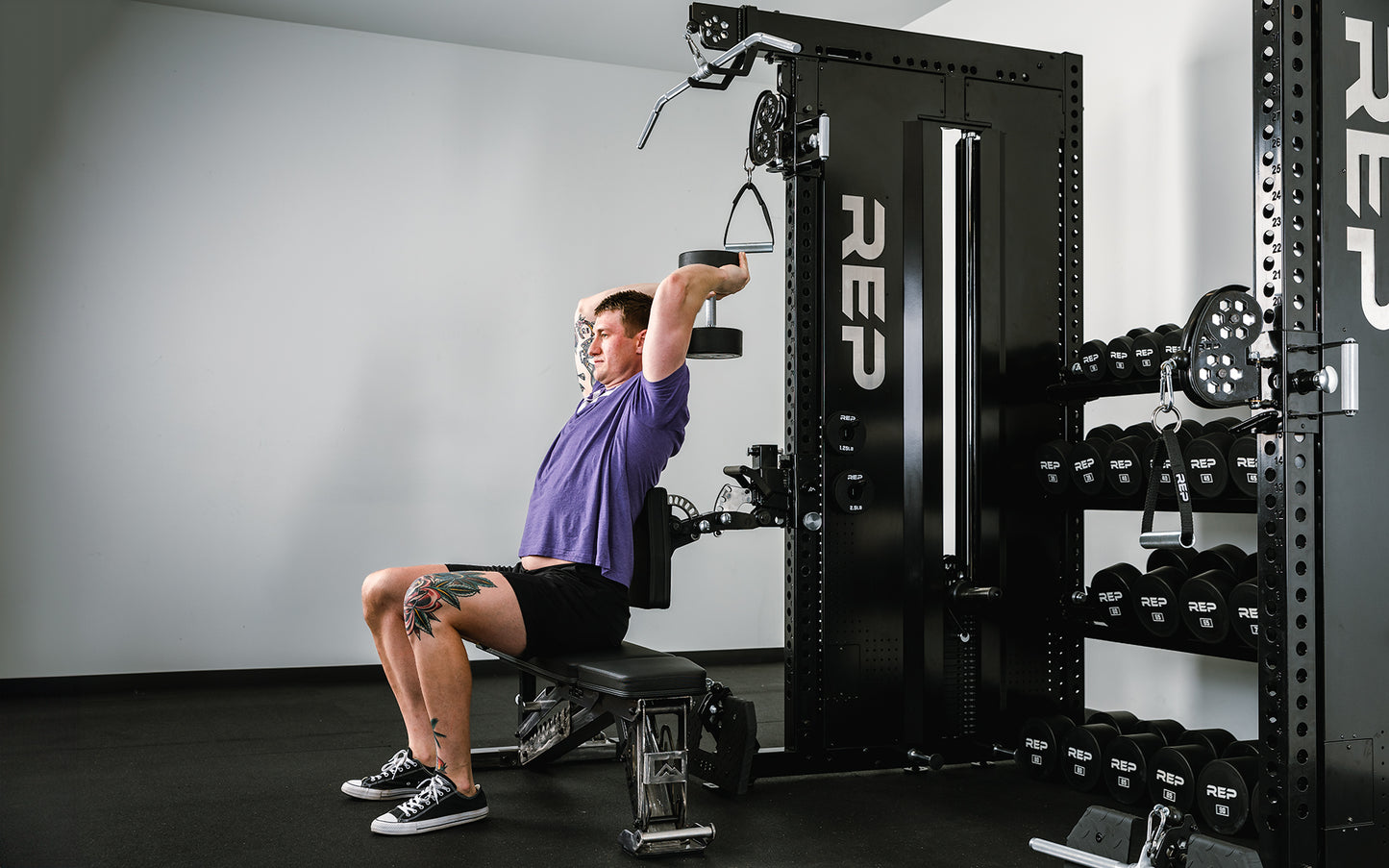

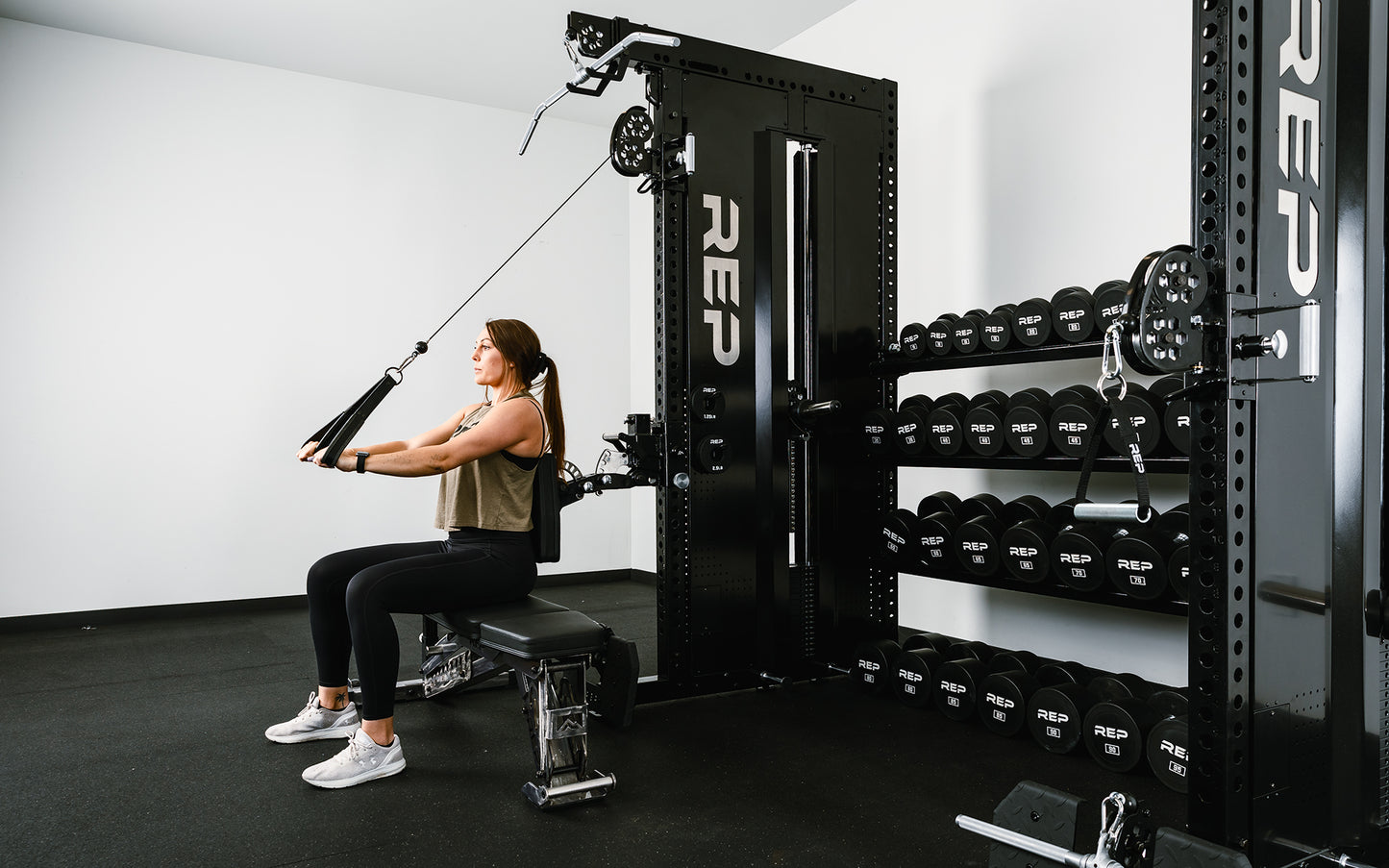

No, but it is highly recommended. Using a bench and Leg Roller might result in an unbalanced feel. With a Leg Roller pair, they must be mounted at different heights. We will be making a dual leg roller soon for those who do not want the Pegasus™ attachment. Utilize the Pegasus™ attachment for different exercises, such as chest-supported rows, flies, chest-supported curls, and more.

You can stagger pairs of 8kg-24kg (a whole set), pairs of 12kg-28kg, pairs of 16kg-32kg, or pairs of 36kg-48kg REP kettlebells on a single 72” Shelf. The kettlebell side features a surface area of 5.4SQFT.

Yes, the kettlebell side is a large, flat shelf. However we do not recommend storing plates on this shelf.

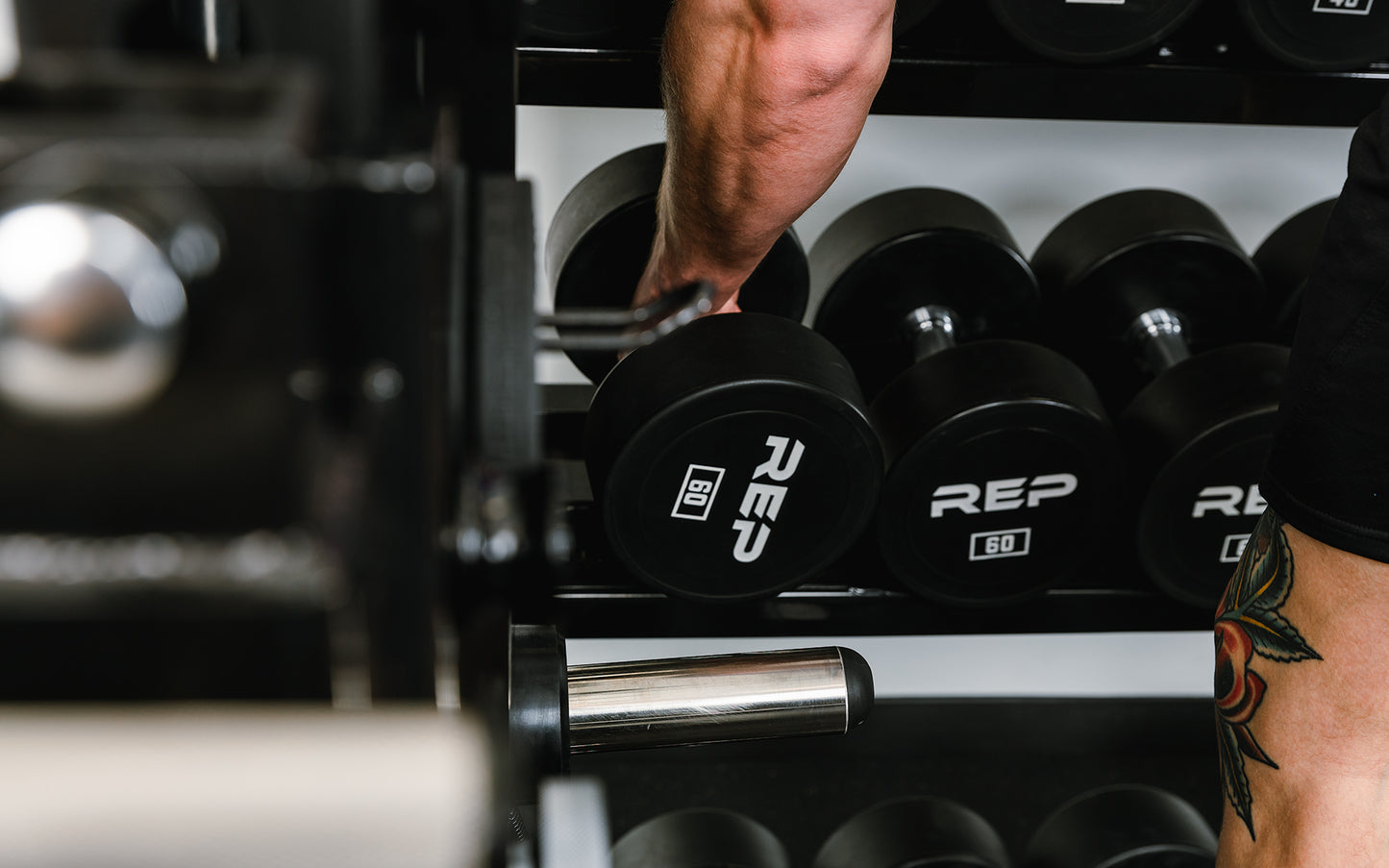

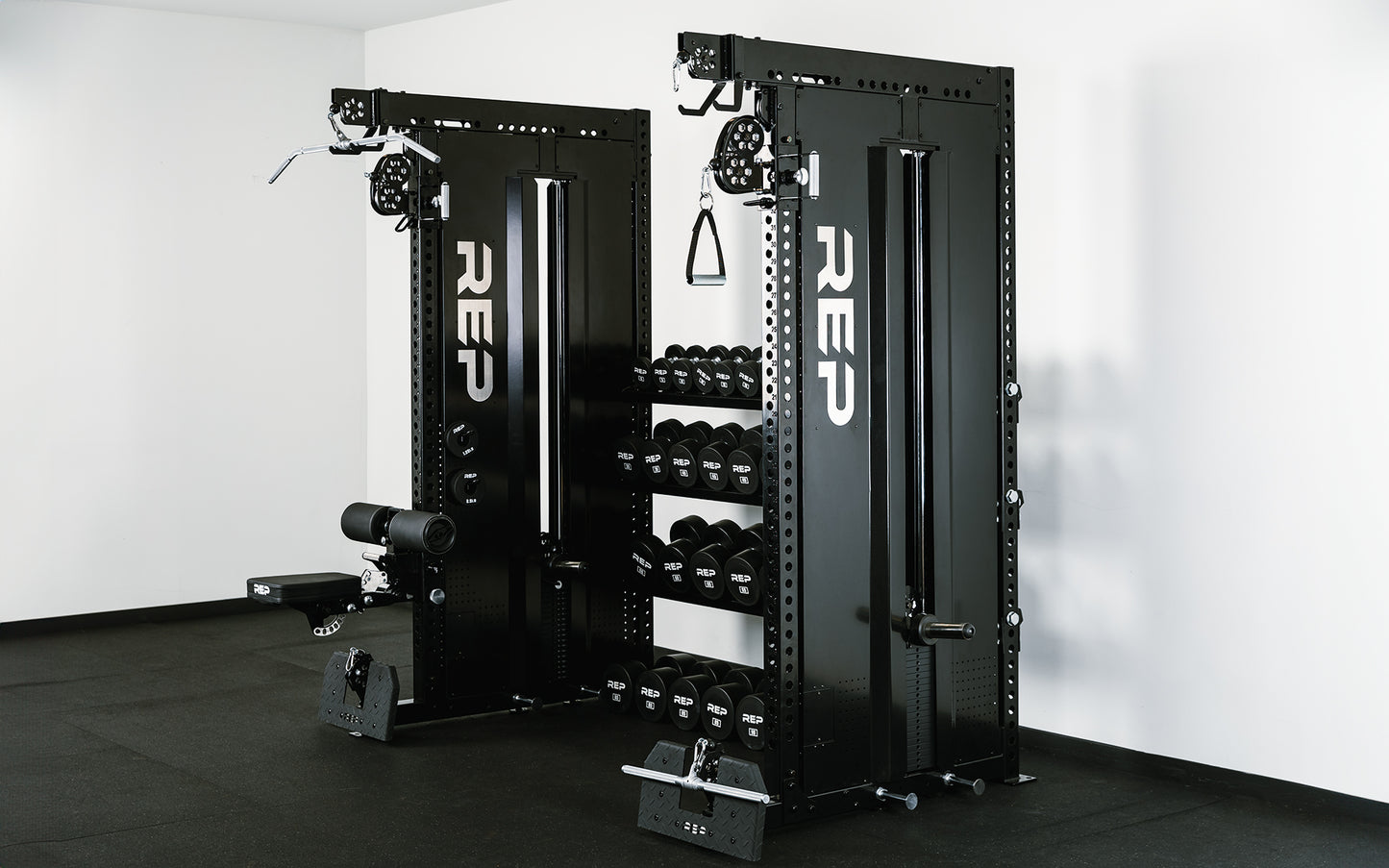

You can fit 5-80lb dumbbells on three 72" shelves with the 85-100lb pairs fitting in between the towers on the floor. Rubber Coated Dumbbells are not compatible.

Structural welds and frames have a lifetime warranty. Pop-pins, pulleys, bearings, and cables have a one-year warranty.

No, it is not necessary to bolt the Adonis™ to the ground. While there is an option to bolt it down for extra stability through the base, the base alone provides sufficient support . When attached to a rack, the tower has lateral support through the crossmembers/Rear Base Stabilizer 2.0 and pull-up bar, eliminating the need for a base or bolting down. The Dual Adonis™with Storage also has lateral support, eliminating the need for a base or bolting down. However, it is important to note that for a stand-alone or single-sided Adonis™ with Storage configuration, the base is required.
